United Studio Technologies UT Twin48

Grootmembraan buizen condensatormicrofoon met dubbele modus, zorgvuldige reproductie van twee eerbiedwaardige klassiekers, de 47- en 48-stijl verenigt in één microfoon

UT Twin48

Prijs op
aanvraag

Voeg dit product toe aan uw offerte

In offerte
Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

United Studio Technologies UT Twin48

Twin Mode Tube-Driven Large Diaphragm Condenser Microphone

Painstakingly recreated with the utmost attention to detail; United’s take on both variants of the most revered condenser microphone of all time — now at an affordable price.

Massive Tube Microphone Sound

The most legendary series of microphones has returned.

The UT Twin48 is an exceptional preservation of two venerable classic tube microphone designs. The original classics of the late ‘40s and ‘50s have been front and center in countless recordings — and demand for them is higher than ever! United has taken these classic-specification designs to the next level by uniting both designs into a single microphone.

Massive tube sound calls for the right tube: The UT Twin48’s amplifier stage is based around a select new old stock EF86 pentode glass vacuum tube — the last living descendent of the originals’ tube. This results in a bold, rich sound, due to the pentode’s harmonic profile being much different than modern dual-triode tubes.

These legendary microphones, still inspiring after generations, are now available in both of their original forms in the UT Twin48.


Specifications

  • Type: Condenser Microphone
  • Capsule: UT Series, 34 mm brass, single backplate K48
  • Diaphragm: Dual-diaphragm, 6 micron, 24k gold sputtered Mylar (PET film)
  • Capsule Sensitivity: -37dB @ 60v
  • Frequency Response: 20 Hz - 20 kHz
  • Polar Pattern: 47 Cardioid, 48 Cardioid, 47 Omni, 48 Figure-of-8
  • Operating Modes: 2: 47 and 48
  • SPL: 137dB @ 0.5% THD
  • Output Impedance: 35 Ω
  • Ouput Connector: 24k gold plated 7 pin XLR
  • Amplifier Type: Vacuum tube
  • Tube: NOS selected EF86 pentode vacuum tube
  • Self Noise: 11 dBA
  • Output: Custom-wound UT Series transformer, made in USA
  • Body: Nickel electroplated, solid milled brass
  • Mount: Suspension type shock mount (included)
  • Ground: IEC320 pin G/E
  • Interconnect: Custom Sommer 7 conductor XLR cable 6 m / 19.7’

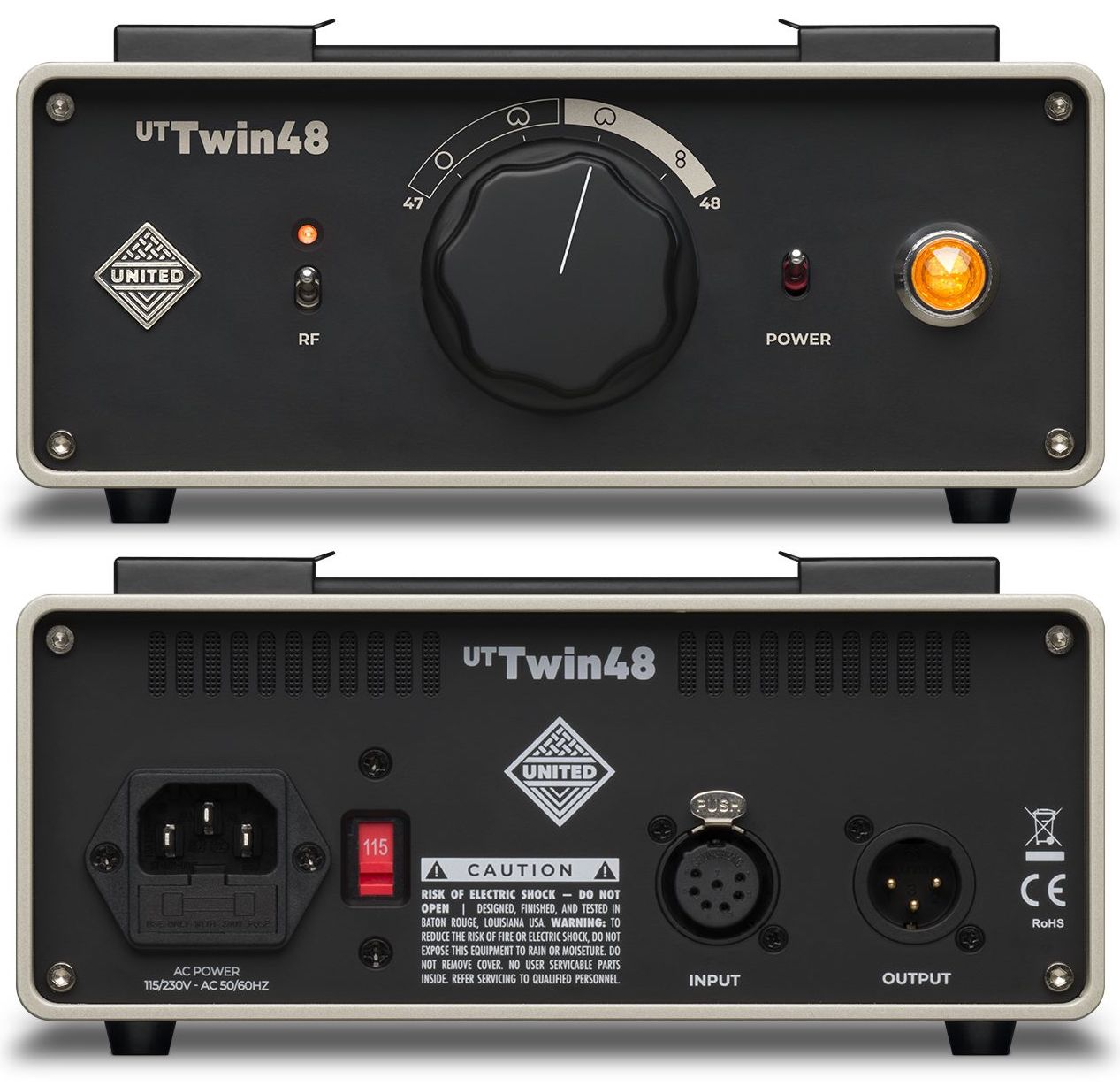

  • Power Connector: IEC320 3-conductor receptacle
  • Power Input: 110-120 vAC or 220-240 vAC; switch selectable

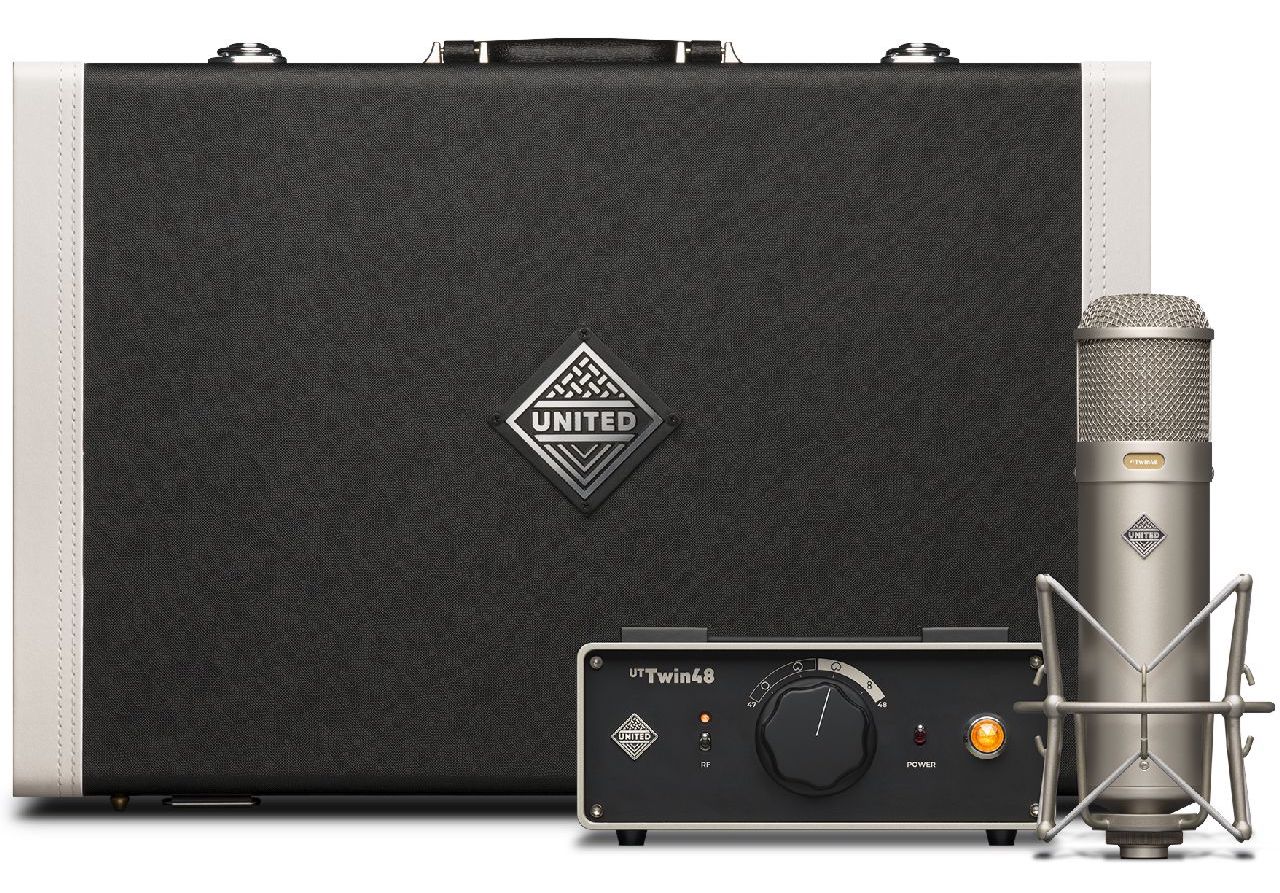

  • Included Accessories: Vintage-style briefcase, shockmount, power supply, custom interconnect cable
  • Dimensions - Microphone: Height: 254 mm / 10″, Diameter: 61 mm / 2.4″, Shockmount Depth: 119 mm / 4.7″ - 184 mm / 7.2″
  • Dimensions - Power supply: Height: 93 mm / 3.66″, Height (w/o feet): 87mm / 3.42”, Width: 195 mm / 7.5″, Depth: 180 mm / 7″
  • Dimensions - Briefcase: Height: 170 mm / 6.75”, Width: 500 mm / 19.75″, Depth: 320 mm / 12.75″

Twin Mode Operation

The UT Twin48’s two operating modes go beyond just polar pattern selection. The classic 47 and 48-style mics each derived their cardioid operation in very different ways — producing subtle tone differences as well as a slightly different polar pattern. For the first time ever, the UT Twin48 delivers both options in a single microphone.

47 Mode offers both 47 Cardioid and Omni patterns, while 48 Mode offers 48 Cardioid and Figure-of-8. Each cardioid mode delivers a different tonal flavor and performance:

  • 47 Cardioid: de-couples the rear diaphragm in a process known as True Cardioid, for a louder sound with improved sensitivity with more background and top-end detail.
  • 48 Cardioid: polarizes the rear diaphragm with the same voltage as the backplate — AKA Active Cardioid — for a more tightly closed-in, warmer, intimate tone that is a bit lower in sensitivity.

Many recording engineers prefer the warmer, more intimate sound of the 48 Cardioid, while others prefer the bigger, open sound of the 47 Cardioid — these options make the UT Twin48 a perfect choice for many different applications; Experiment to find the most flattering capture of a singer’s voice; add a bit of ambience to a horn performance; and get the cleanest, most articulate tones imaginable from strings and horns — all from a single mic!
