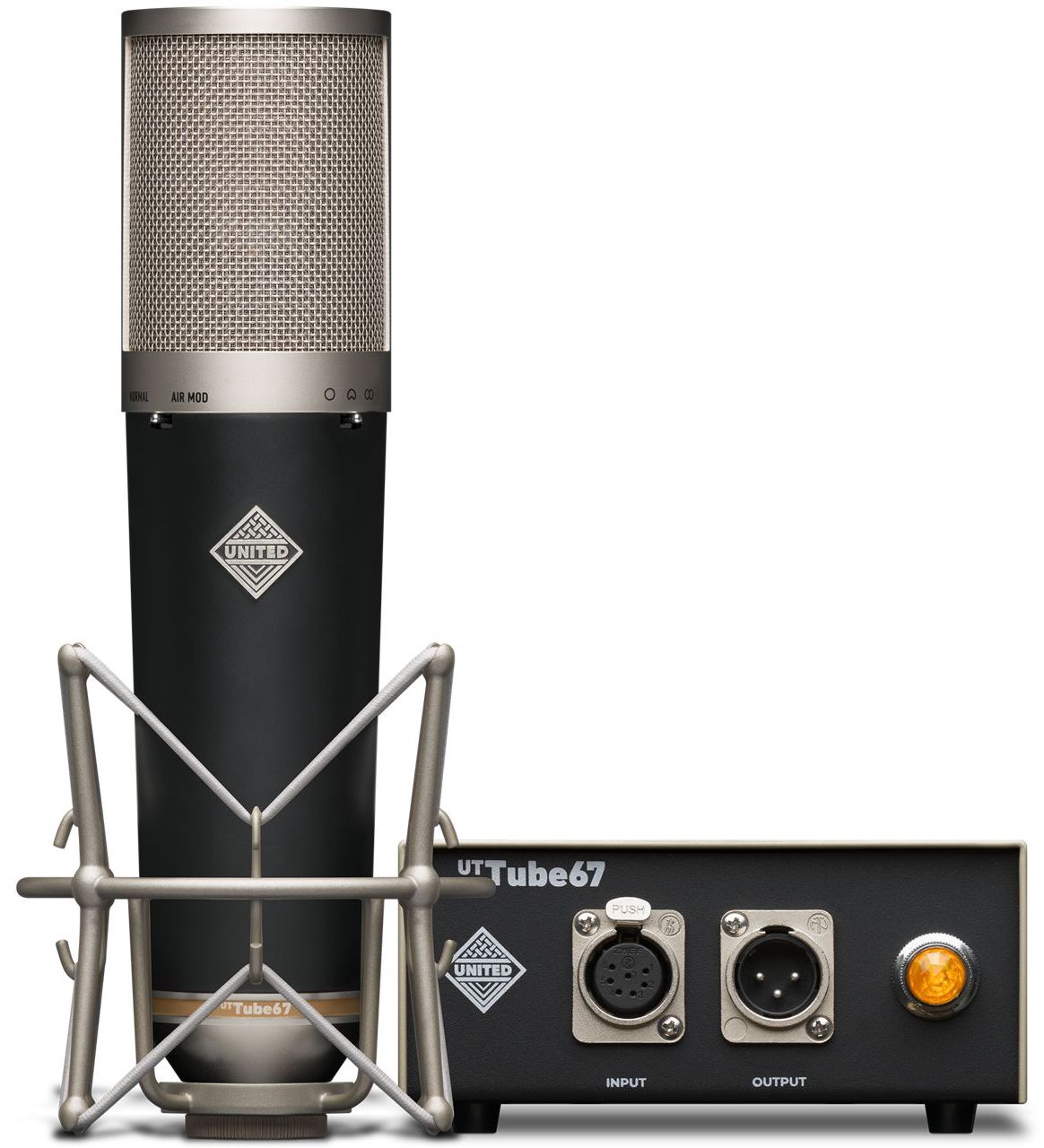

United Studio Technologies UT Tube67

Silky-smooth tube sound.
The UT Tube67’s smooth top-end make it an outstanding choice for vocals. Linear response across polar patterns ensures versatility, excelling in capturing strings, woodwinds, brass, piano, drums, and both acoustic and electric guitars. United has taken this classic-specification design to the next level with component-level attention to detail, as well as including a switchable Air Modification preferred by many classic recordists.

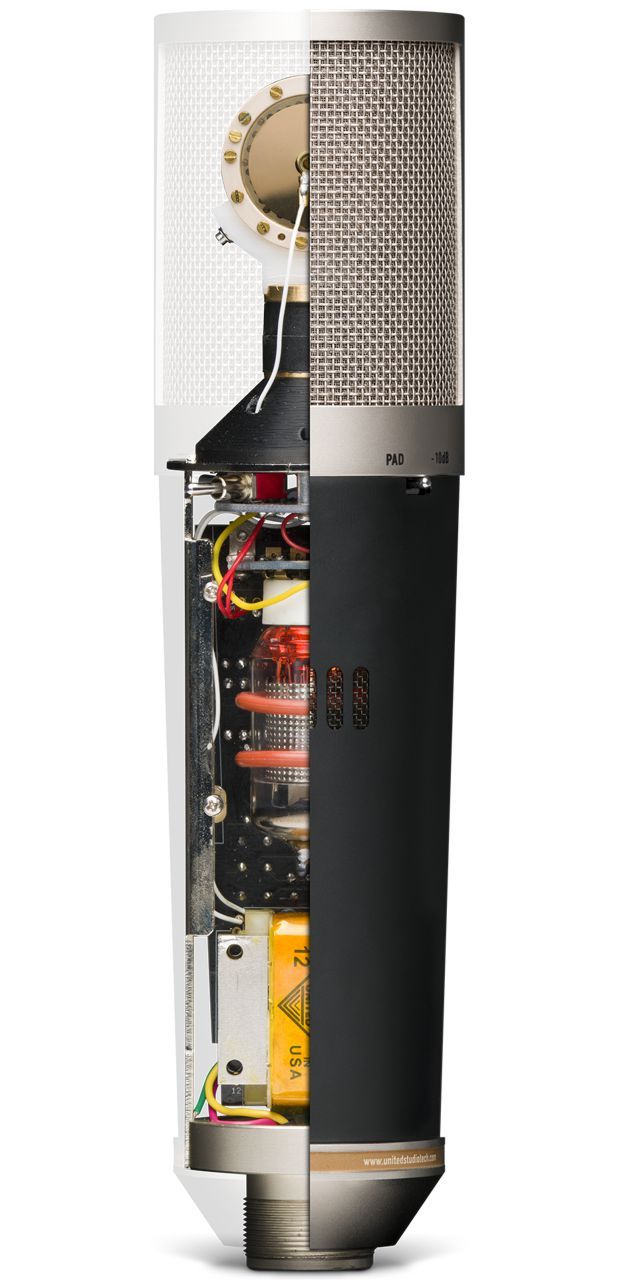

A Custom United UT K67 Capsule.
The UT Tube67’s capsule is a custom-made, historically correct dual backplate/diaphragm capsule; skinned in a laboratory clean-room environment and 24k gold-sputtered on 6 micron Mylar. It has been optimized for the microphone’s operating voltage, and tuned to its ancestors’ specification; resulting in a smooth sound.


Specifications

• Type: Condenser Microphone
• Capsule: UT Series, 34 mm brass, dual backplate K67
• Diaphragm: 6 micron, 24k gold sputtered Mylar (PET film)
• Capsule Sensitivity: -38dB @60v polarization
• Frequency Response: 20 Hz - 20 kHz
• Polar Pattern: Cardioid, Omni, Figure-of-8
• SPL: 137dB @ 0.5% THD
• Output Impedance: 38 Ω
• Amplifier Type: Vacuum tube
• Tube: NOS selected EF86 pentode vacuum tube
• Self Noise: <11 dB
• Output: Custom-wound UT Series transformer, made in USA
• High Pass Filter: 80 Hz (-12dB down point)
• Pad: -10dB
• Body: Nickel electroplated / black satin paint, solid milled brass
• Mount: Suspension type shock mount (included)
• Interconnect: Custom Sommer 7 conductor XLR cable 6 m / 19.7’
• Output Connector: 24k gold plated 3 pin XLR, pin 2 HOT, pin 1 GND from Power Supply
• Power Connector: IEC320 3-conductor receptacle
• Power Input: 110-120 vAC or 220-240 vAC; switch selectable
• Dimensions - Microphone: Height: 241 mm / 9.48″, Diameter: 60 mm / 2.375″, Shockmount Depth: 119 mm / 4.7″ - 184 mm / 7.2″

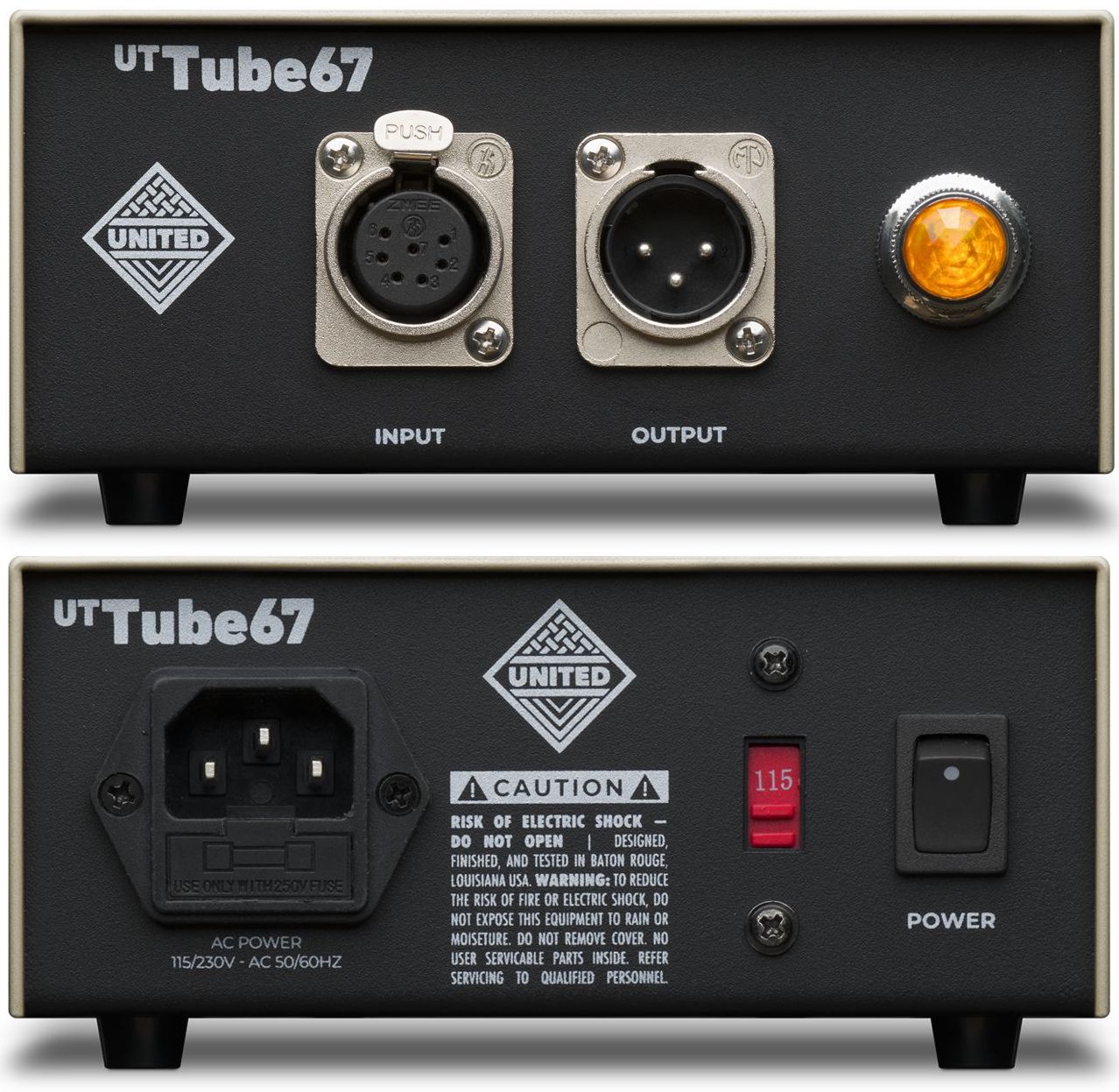

• Dimensions - Power Supply: Height (w feet): 67 mm / 2.63″, Height (w/o feet): 60 mm / 2.36″, Width: 143mm / 5.6″Depth: 171 mm / 6.75″
