Neumann N 248 Power Supply

Neumann N 248 Power Supply

Power supply for one or two mono condenser microphones with 48 V phantom power

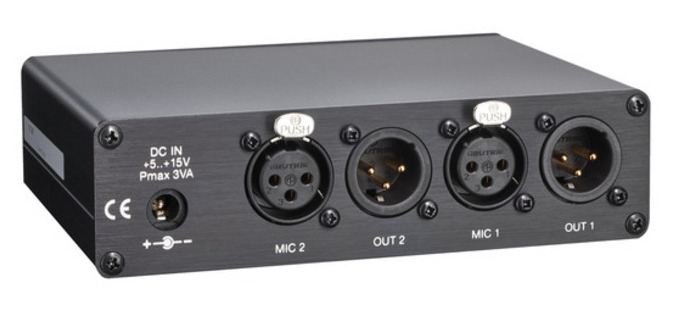

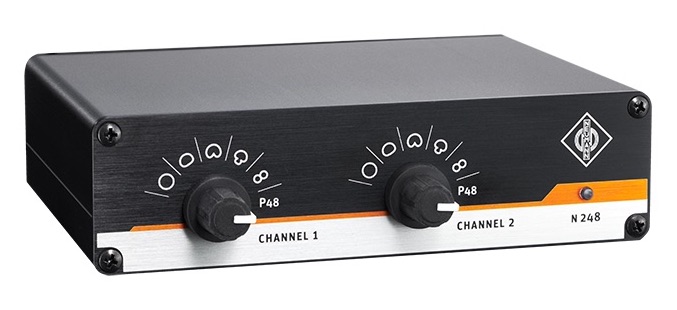

The N 248 supplies one stereo microphone, or two mono condenser microphones with 48 V phantom power (P48). All connectors are of XLR 3 type. The audio signal outputs are DC-free. The 5 directional patterns of the TLM 170 R can be remote controlled with rotary switches.

The remote control operates by varying the nominal phantom voltage of 48 V over a range of ± 3 V (patented). As in standard operation, cable lengths up to 300 m are permissible. Set to P48, all conventional microphones can be used as well.

Even mixed operation is possible, with one channel remote controlling a TLM 170 R, while the second output supplies a conventional microphone.

Technical Data

• Mains voltage EU: 230 V/50 Hz
• Mains voltage US: 117 V/60 Hz
• Mains voltage UK: 230 V/50 Hz
• DC voltage input: 5 ... 15 V
• Power consumption: max. 3 VA
• DC voltage output: 48 V +/- 3 V each
• Current output: max. 5 mA each
• H x W x D: 143 x 38 x 103 mm
• Weight: 415 g
