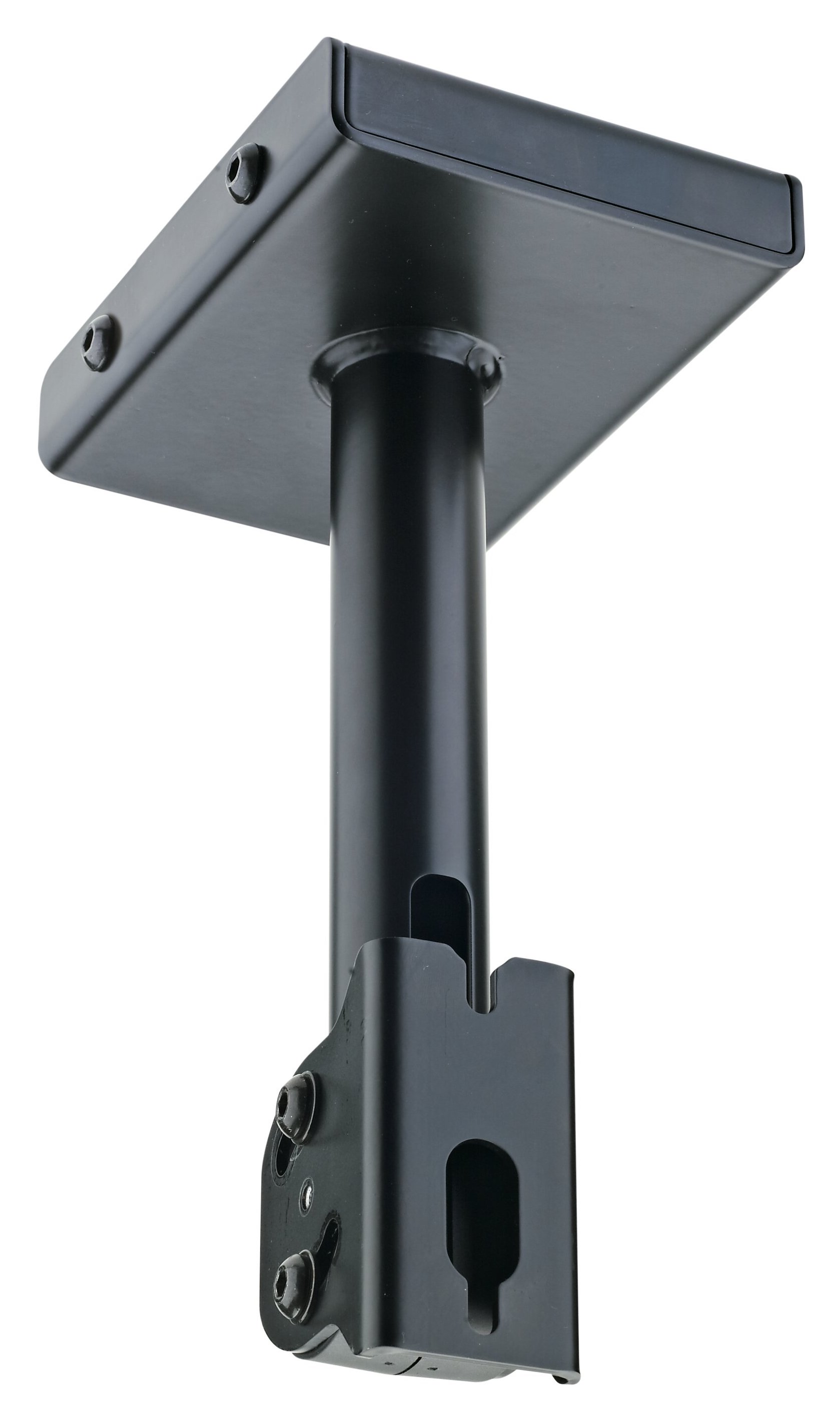

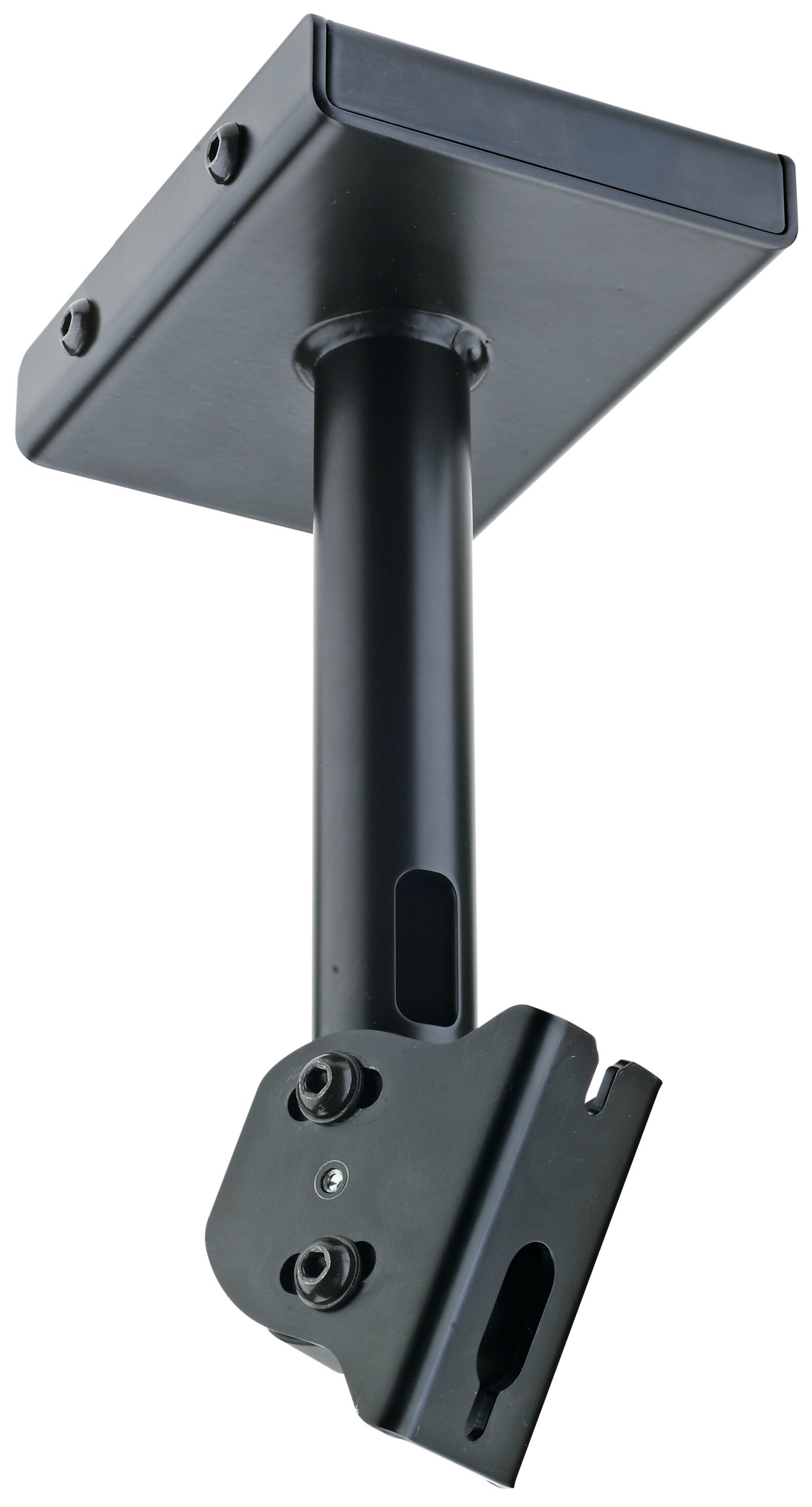

Konig & Meyer 24496-000-55 Speaker Ceiling Mount (black)

Robust and useful loudspeaker ceiling mount with 250 mm distance and internal cable management. The swivel area is +/-45 °. Within the parameters - the settings range from 0 to 45°. The clamping bracket is for loudspeakers with a vertical mounting template from 70 to 76.2 mm. For other attachment possibilities additional adapter brackets are available. A mounting bracket with side and central cable management makes mounting to the ceiling easier.

The K&M Wall and Ceiling Mount Concept:
König & Meyer innovative system of loudspeaker mounts and adapters (24471, 24481, 24496, 19780, 19610) in combination with nine different adapter panels (panel 1 24352 to panel 6 24359) as well as four VESA panels (19615, 19616, 19617, 19718). This system provides great advantages specifically regarding installation, the system can be installed by one individual quickly and easily.

• Adjustment: continuous
• Angle of inclination: 0° to 45°
• Bearing plate: 90 x 47 mm
• Ceiling clearance: 250 mm

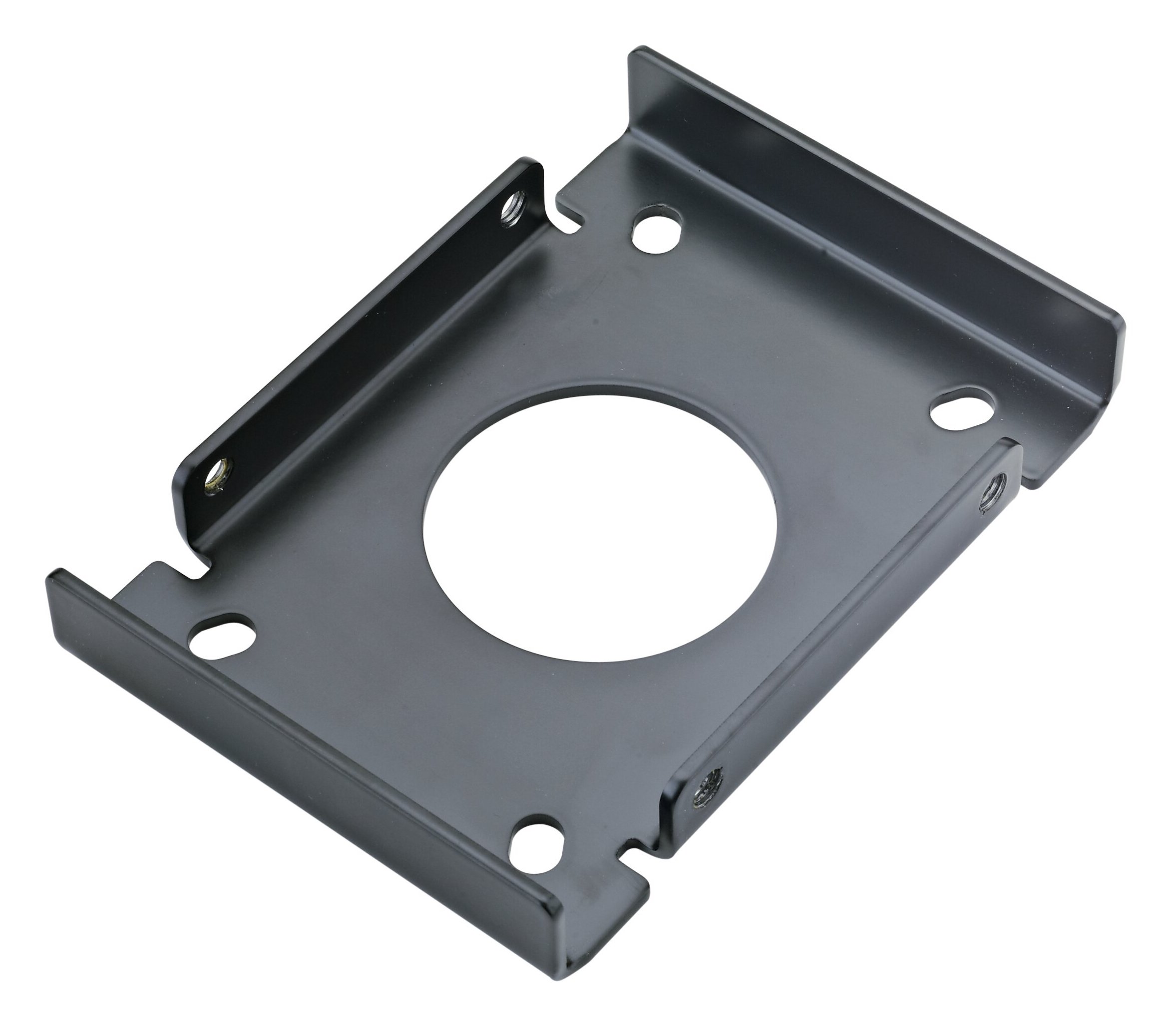

• Ceiling mounting plate: 160 x 118 mm
• EAN: 4016842827886
• Weight: 1.79 kg
• Material: steel
• Max. load capacity: 25 kg
• Mounting: attaches to ceilings
• Spacing of holes: from 70 to 76.2 mm
• Swivel: 90°
• Type: black
• Special features: easy mounting by convenient hooking in and screw locking; internal cable management
