Ferrofish Pulse16 AE | Price only for current stock

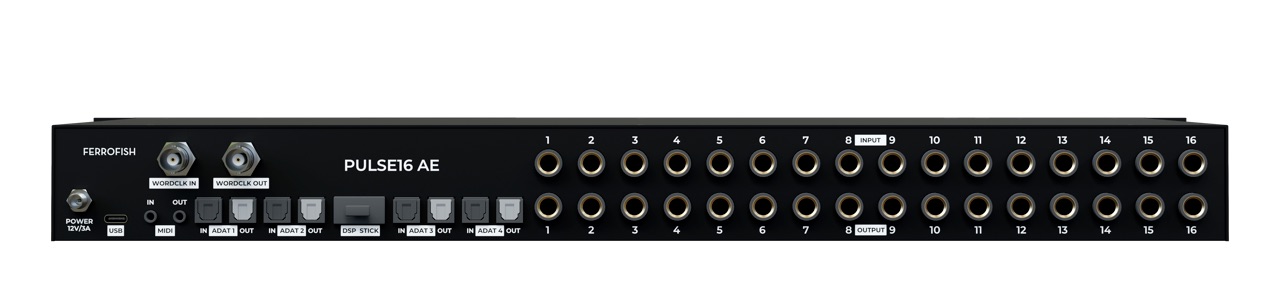

Analog I/O

• 16 balanced TRS inputs (¼-inch / 6.3 mm)
• 16 balanced TRS outputs (¼-inch / 6.3 mm)
• Headphone Output (¼-inch / 6.3 mm)

ADAT Connectivity

• 4 ADAT input ports
• 4 ADAT output ports
• Supports SMUX for higher sample rates:
• 32 channels at 48 kHz, 16 channels at 96 kHz, 8 channels at 192 kHz

Clocking

• Word Clock input and output (BNC connectors)
• Internal high-stability clock or external sync via ADAT or Word Clock

Routing

• Per-channel routing

Signal Monitoring

• High-resolution front-panel displays for input and output level monitoring
• Multi-colored LED meters for clear visual feedback

Controls & User Interface

• Front-panel control knob and buttons for quick navigation and setup

DSP Processing

• Expandable via optional DSP stick

Connectivity

• USB-C and TRS-MIDI Type A for remote control via Ferrofish RemoteFish software, remote control via MIDI CC and for firmware updates
• Remote control via MIDI controller commands (MIDI CC)
• MIDI port for firmware updates and future features

Headphone Output:

• 6.3mm jack output
• Amplification power adjustable in four stages
• Digital volume control with 1 dB resolution
• Dedicated monitoring path via a separate ESS DAC
