Cranborne Audio C.A.S.T. Intro Bundle

Cranborne Audio C.A.S.T. Intro Bundle

Everything you need for simpler cable management

Say Goodbye to Cable Clutter. Say Hello to C.A.S.T.

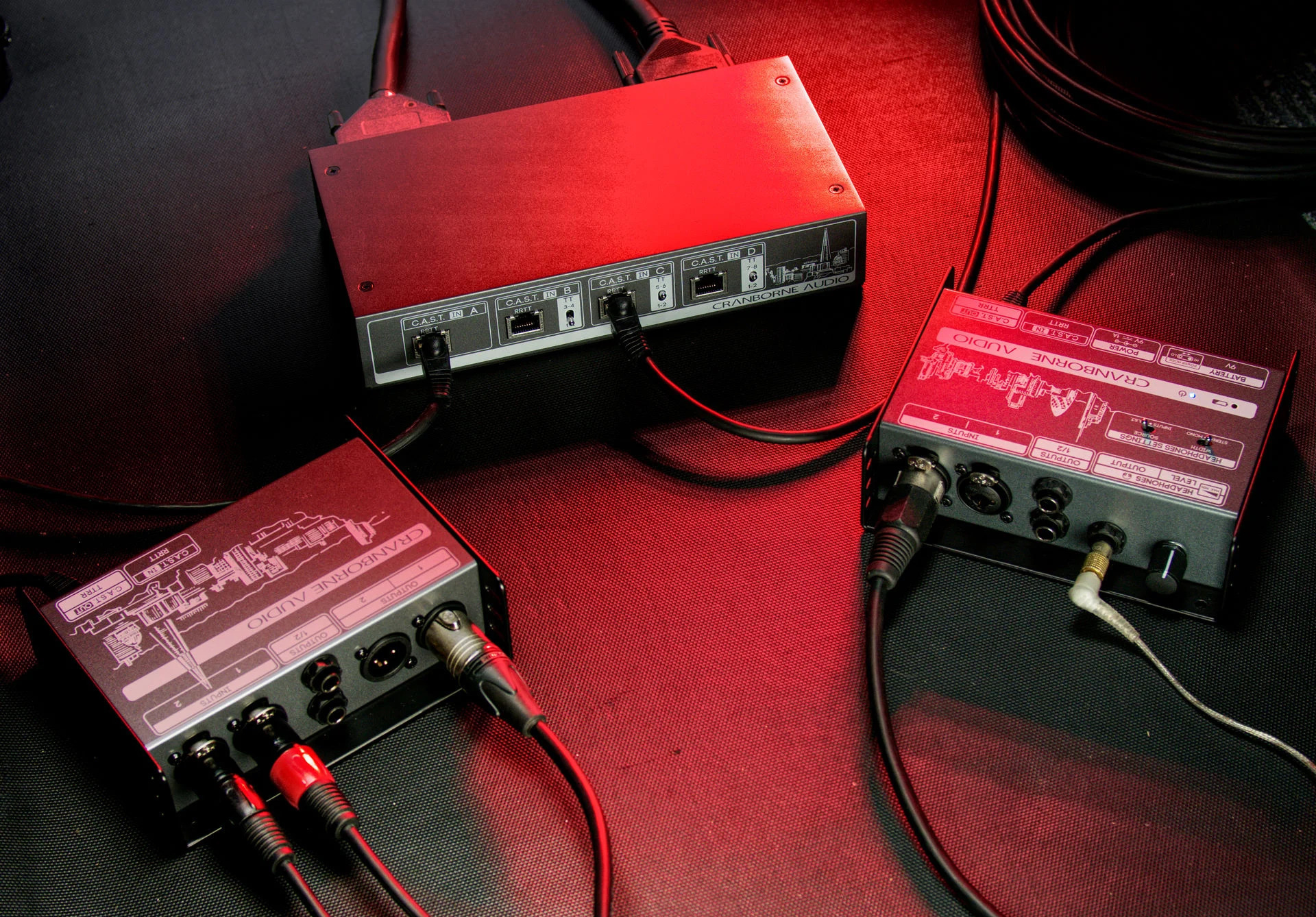

The C.A.S.T. Intro features everything you need to create a C.A.S.T.-enabled studio and transport balanced, analogue audio using standard network cable. A single Cat 5 cable using C.A.S.T. can replace 4 XLR cables - providing better cable management, consistent sound quality, and easier deployment during mobile recording. Using the C.A.S.T. Intro Bundle, you can use standard network cables to distribute IO around your studio with plug-and-play simplicity. Featuring a central connectivity hub in the form of N8 as well as the N22 and N22H breakout boxes, the C.A.S.T. Intro Bundle is an entry-level into the world of C.A.S.T. and ships with two 10m Cat 6 cables and other accessories to get you started.

Key features

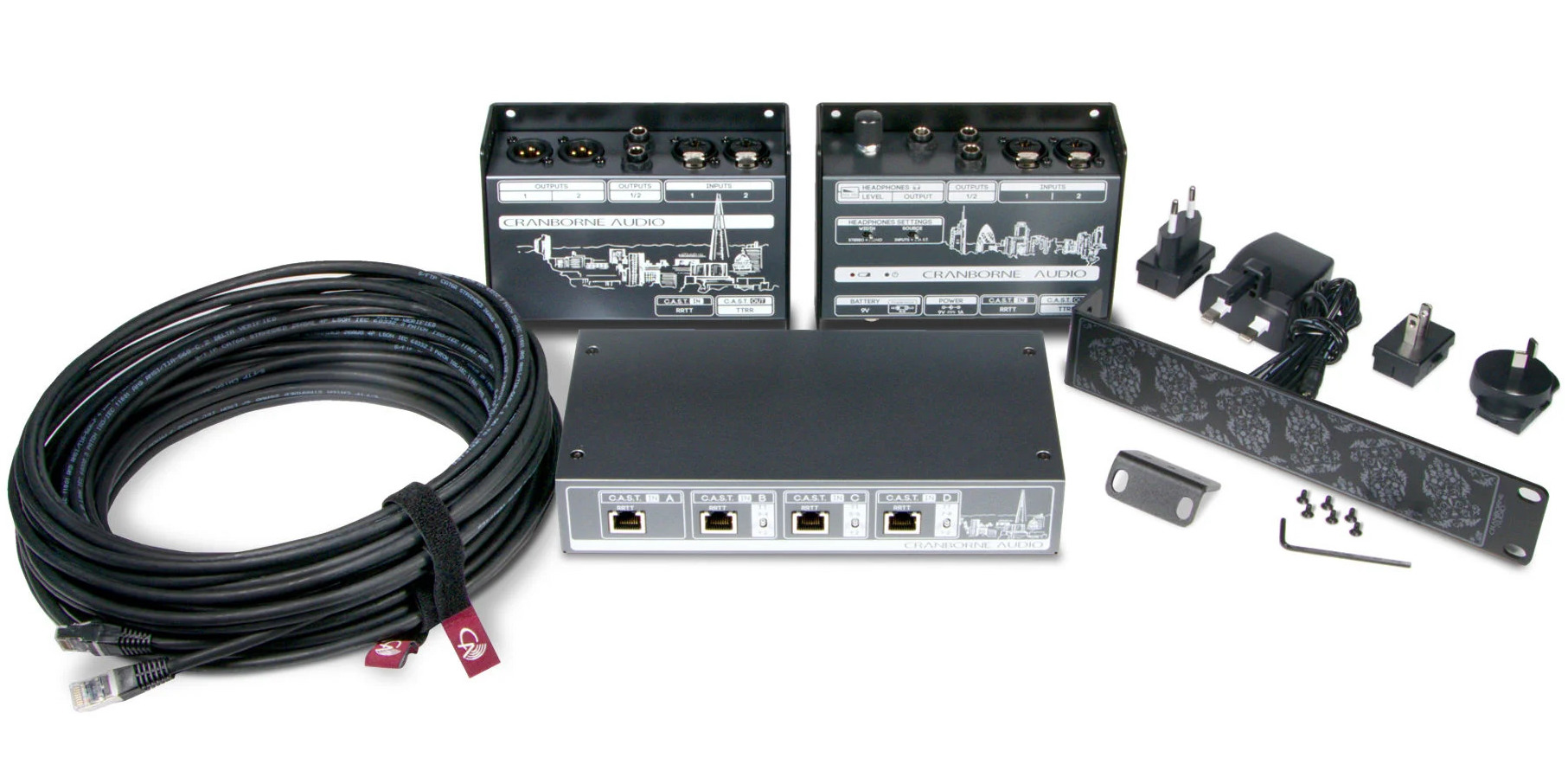

• Bundle with 4 Cranborne Audio products and 2x 10m C.A.S.T cables for instant C.A.S.T. connectivity
  N8 - C.A.S.T. Distribution Hub and Audio Over Cat 5 System
  19” Rackmount Kit for N8

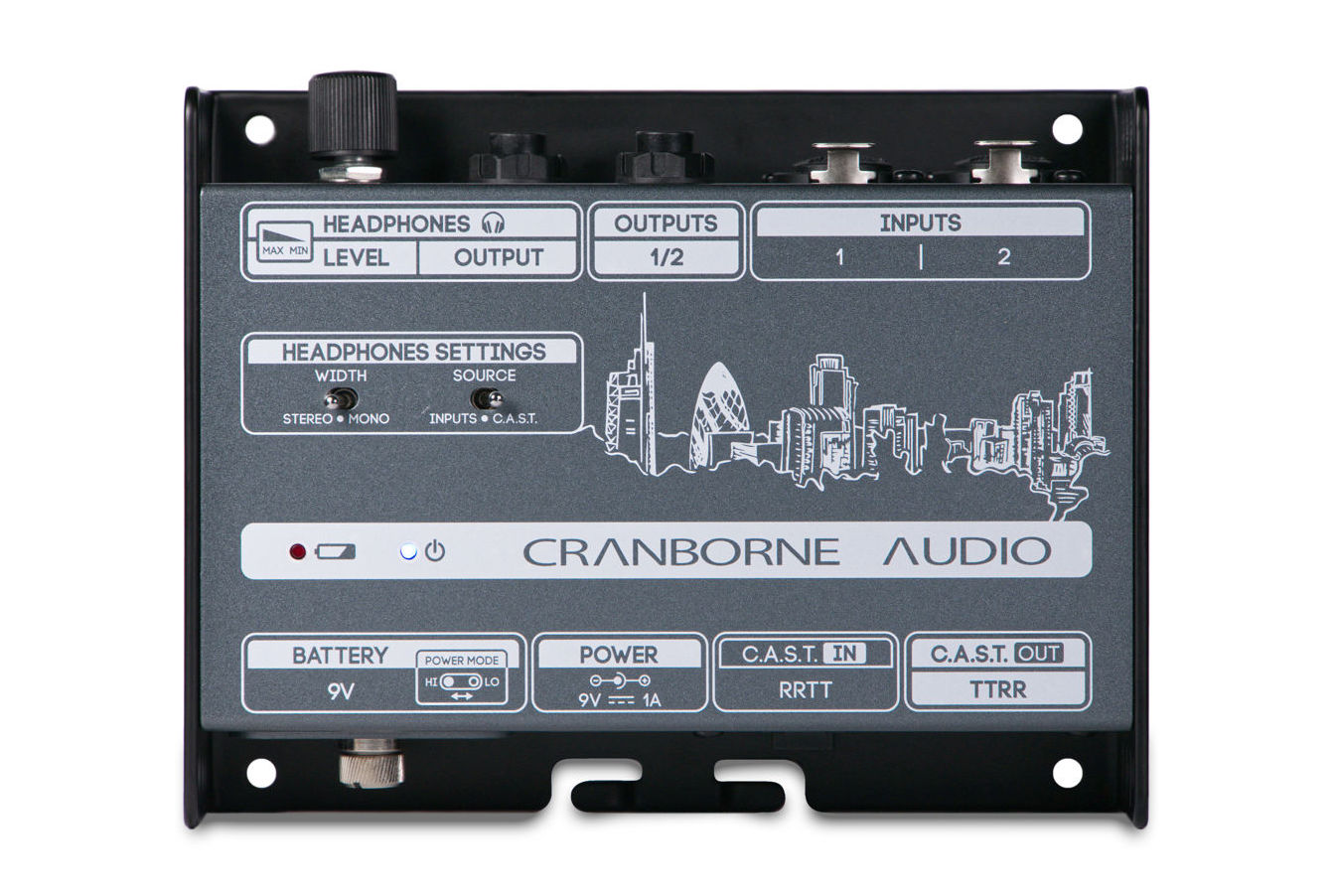

  N22H - Reference-Grade Headphone Amplifier, Cat 5 Snake, and C.A.S.T. Breakout Box
  N22H 9v power supply

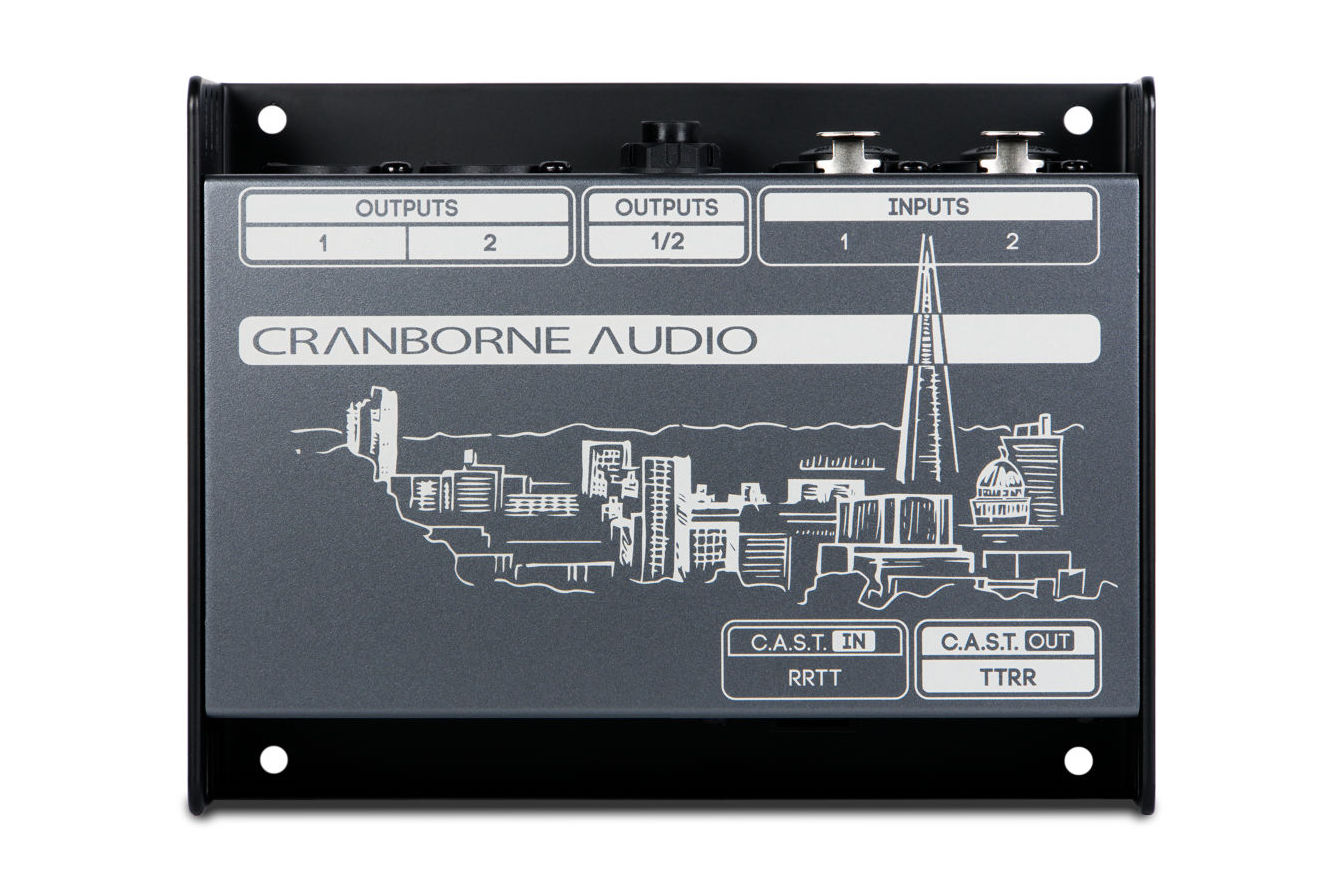

  N22 - Cat 5 Snake and C.A.S.T. Breakout Box
  2x 10m Cat 6e Cable with custom Cranborne Audio Velcro cable ties
  Cranborne Audio Sticker
• Connectivity for up to 4 C.A.S.T. breakout boxes with 2 breakout boxes included in the bundle
• Completely passive operation*
• Fully-balanced, high-quality audio paths
• 8 Inputs and 8 outputs over DB25 (Tascam wiring) (sold separately)
• C.A.S.T. IN A, B, C, and D ports on RH45 with 2 dedicated Input and output paths each
• Compatible with any shielded Cat 5e/Cat 6/Cat 7 cable with distances up to 100m/330ft
• Improved crosstalk performance with high-performance Cat 6 and Cat 7 (recommended)
• Ruggedised metal enclosure
• Compatible with all Cranborne Audio C.A.S.T.-enabled devices including N22, N22H, Camden EC1, and Camden EC2
• Fully-support of 48v phantom power
• N8 Rack-mountable with supplied Half Rack Kit

*N22H Needs power supply for headphone amplifier operation (included)

Click here for technical specifications, downloads, reviews and more...
